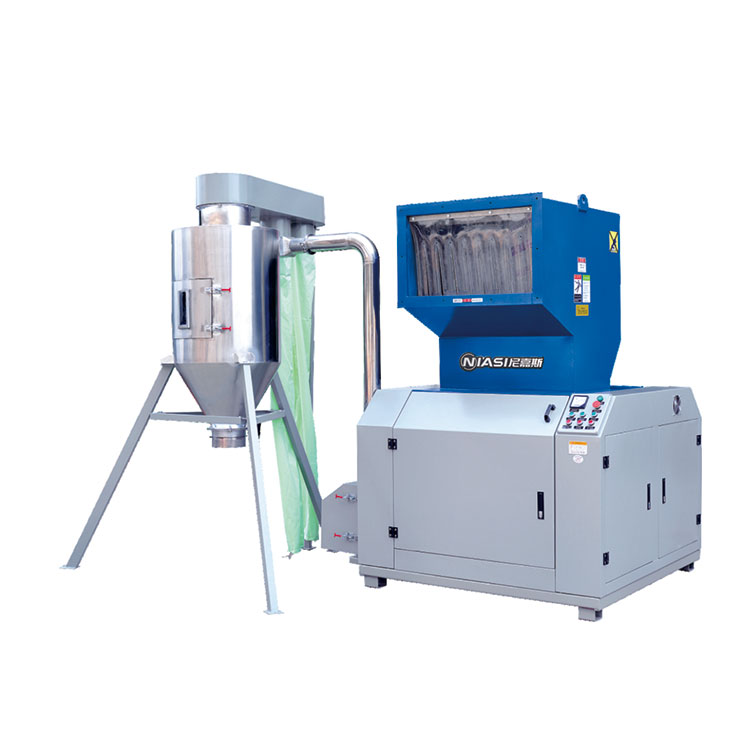

Silent Crusher

Product Description

Silent Crusher

Niasi is a Chinese factory specializing in the production and supply of Silent Crusher. It is a national high-tech enterprise that integrates research and development, design, production, sales, and installation. The company focuses on powder/granule conveying projects for large plastic enterprises.

Niasi's Silent Crusher is equipped with built-in soundproof enclosures, ensuring reduced noise during use. The unique blade design simplifies blade replacement.

Easy blade installation: The adjustment of the Silent Crusher blades is done using an adjustment frame, and the entire blade replacement process is completed outside the Silent Crusher. Both fixed and rotating blades are made of high-strength steel and can be reground multiple times.
Unique cutting method: The rotor's blades utilize the latest "V" shape cutting technology. Compared to traditional blades, the Silent Crusher's "V" shape design continuously pushes the material towards the center of the rotor while cutting. This structure reduces the wear on the blades and crushing chamber.
Mobile compact design: The built-in soundproof enclosure design of the Silent Crusher makes the entire machine very compact and movable. The entire machine can be lifted or moved using a forklift or other standard lifting equipment.

Model	NMC300/300	NMC300/600	NMC300/800	NMC400/600	NMC400/800	NMC500/800
Drive power (kw)	7.5	11	22	22	30	37
Rotor diameter (mm)	300	300	300	400	400	500
Rotor width (mm)	300	585	785	600	800	800
Number knife	3*1	3*2	3*2	3*2	3*2	5*2
Number knife	2*1	2*1	2*2	3*2	3*2	3*2
Size (mm)	270*375	425*560	425*760	530*570	550*770	650*770
Crushing cavity diameter (mm)	370*300	370*585	370*785	490*600	490*800	600*800
Weight (kg	1000	1500	2100	2300	3500	4500
Screen aperture (mm)	10	10	10	10	10	10
Fan Installation	Random body installation			External stand- alone installation
Dimensions (mm)	140014202050	140017002100	155019002250	170016502400	165018002550	185019002950
